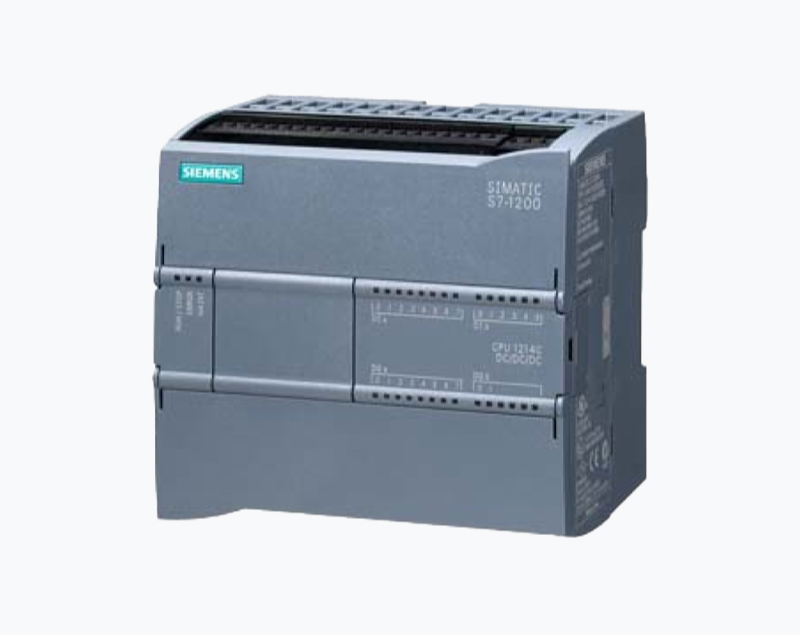

Siemens S7-1200 CPU 1214C
Siemens S7-1200 CPU 1214C, kompakt tasarımı, yüksek işlem hızı, entegre I/O ve genişletme modülleri ile esnek programlama imkanı sağlayan endüstriyel otomasyon için ideal çözümdür. Küçük ve orta ölçekli projeleriniz için güçlü performans ve güvenilirlik sunar.

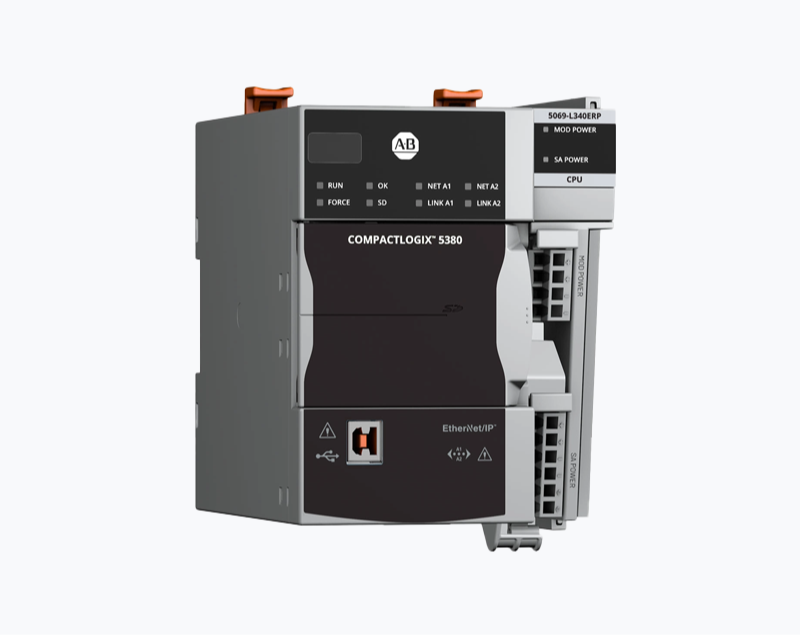

Allen-Bradley CompactLogix 5380
Yüksek performanslı, güvenlik özellikli ve ölçeklenebilir otomasyon kontrol platformu

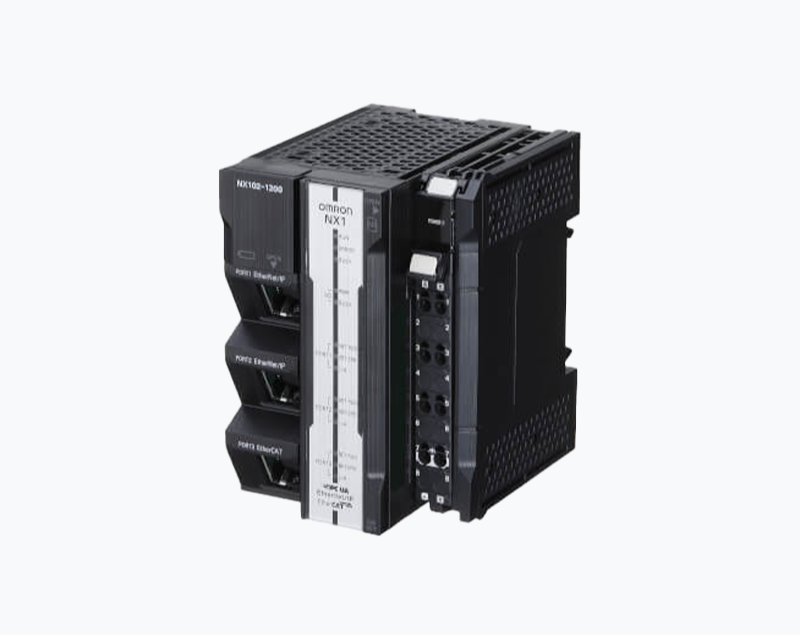

NX102-1000
Sysmac NX1 Modular CPU, 5MB program and 33.5MB data memory , built-in EtherCAT (2 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP) |
NX102-1020
Sysmac NX1 Modular CPU with with Database Connectivity, 5MB program and 33.5MB data memory , built-in EtherCAT (2 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP) |
NX102-1020-DH
Sysmac NX1 Modular CPU with Time Series Data Collection, 5MB program and 33.5MB data memory , built-in EtherCAT (2 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP) |
NX102-1100
Sysmac NX1 Modular CPU, 5MB program and 33.5MB data memory , built-in EtherCAT (4 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP) |
NX102-1120
Sysmac NX1 Modular CPU with with Database Connectivity, 5MB program and 33.5MB data memory , built-in EtherCAT (4 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP) |

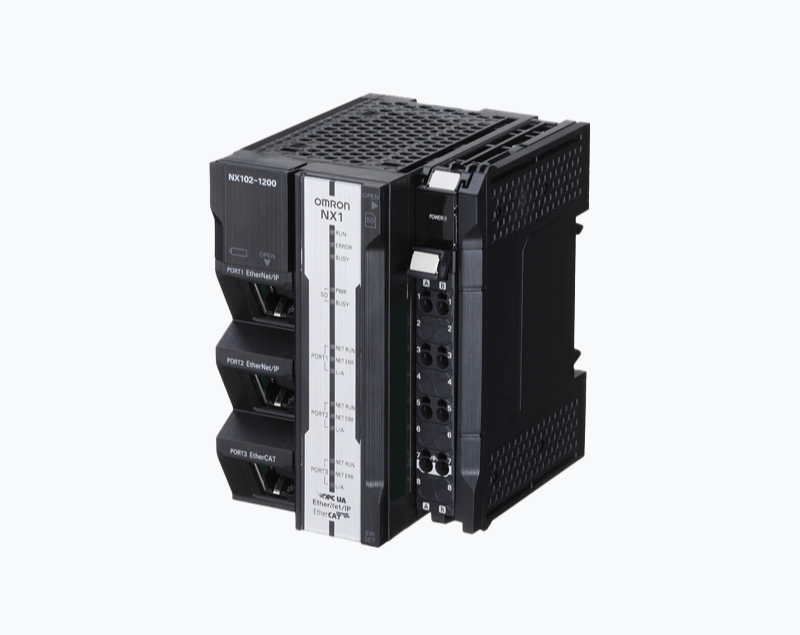

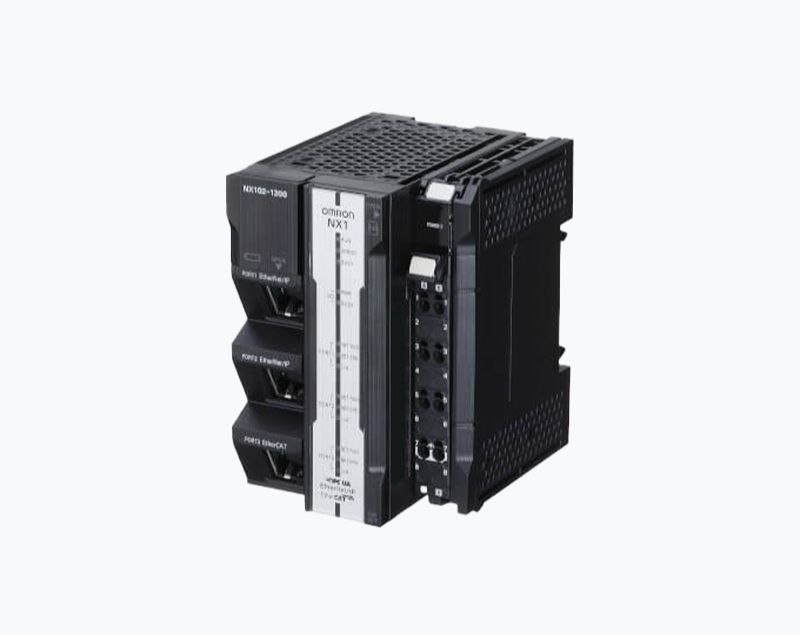

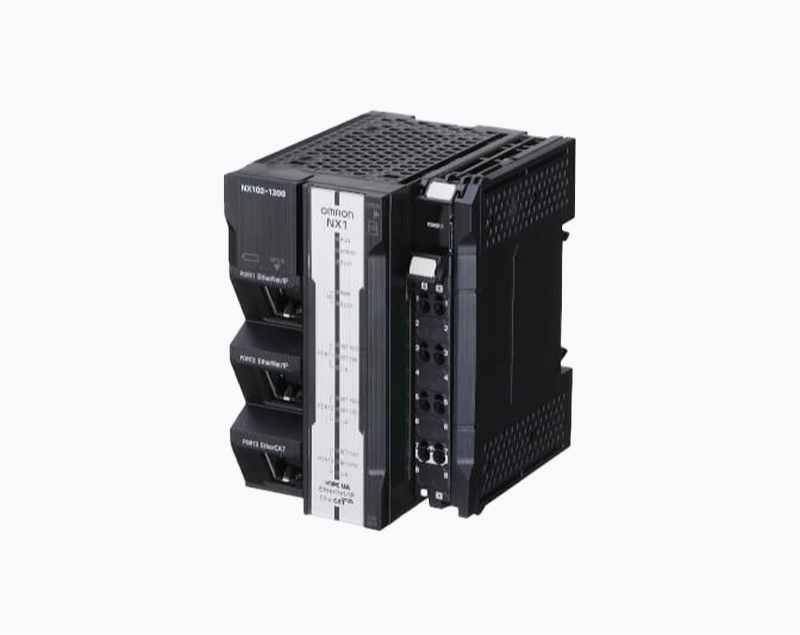

NX102-1200
Sysmac NX1 Modular CPU, 5MB program and 33.5MB data memory , built-in EtherCAT (8 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP) |
NX102-1220
Sysmac NX1 Modular CPU with with Database Connectivity, 5MB program and 33.5MB data memory , built-in EtherCAT (8 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP) |
NX102-9020
Sysmac NX1 Modular CPU with with Database Connectivity, 5MB program and 33.5MB data memory , built-in EtherCAT (0 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP) |

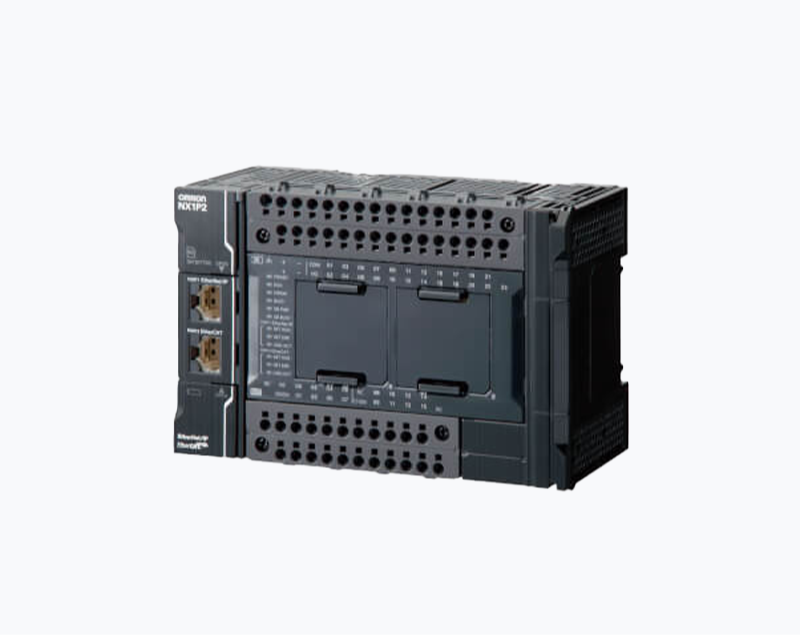

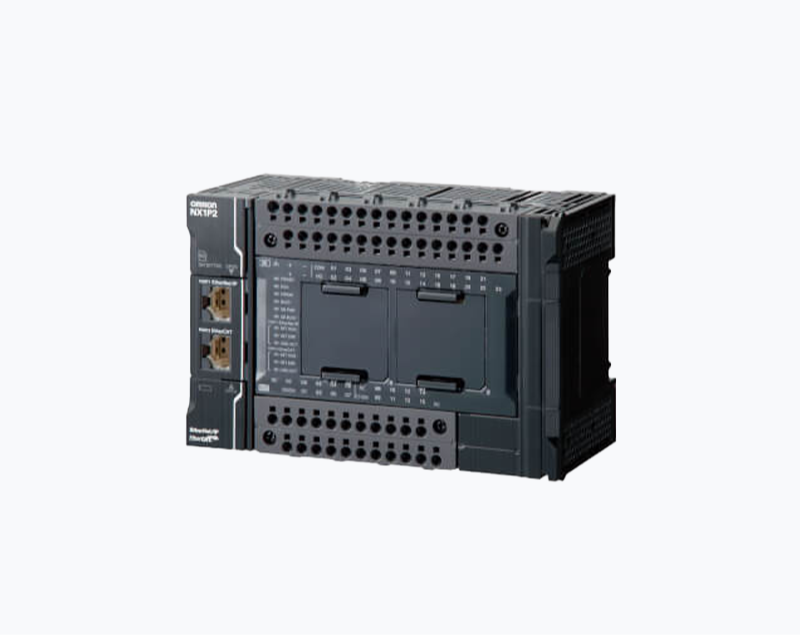

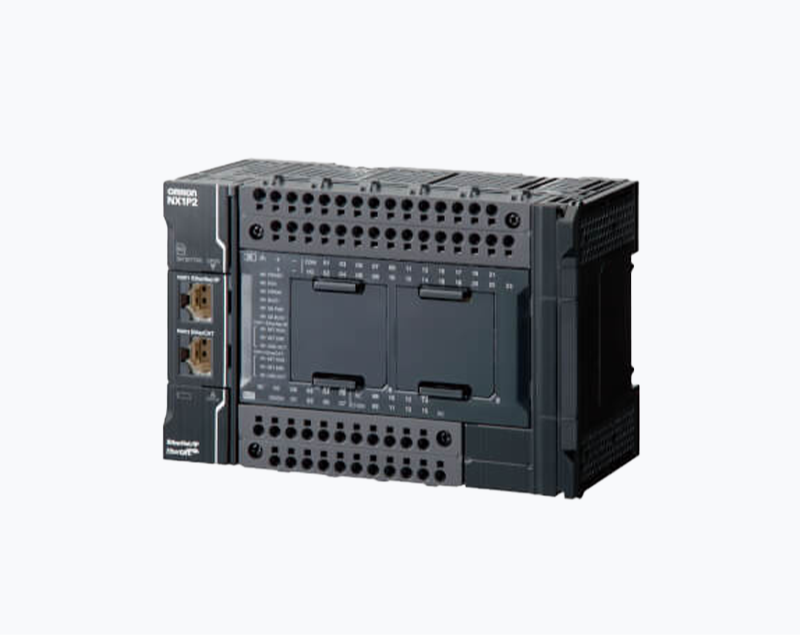

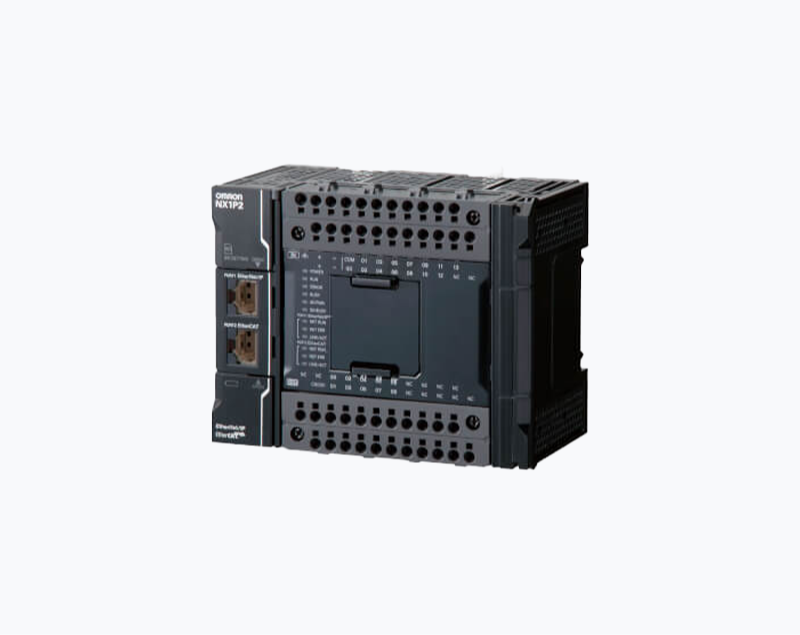

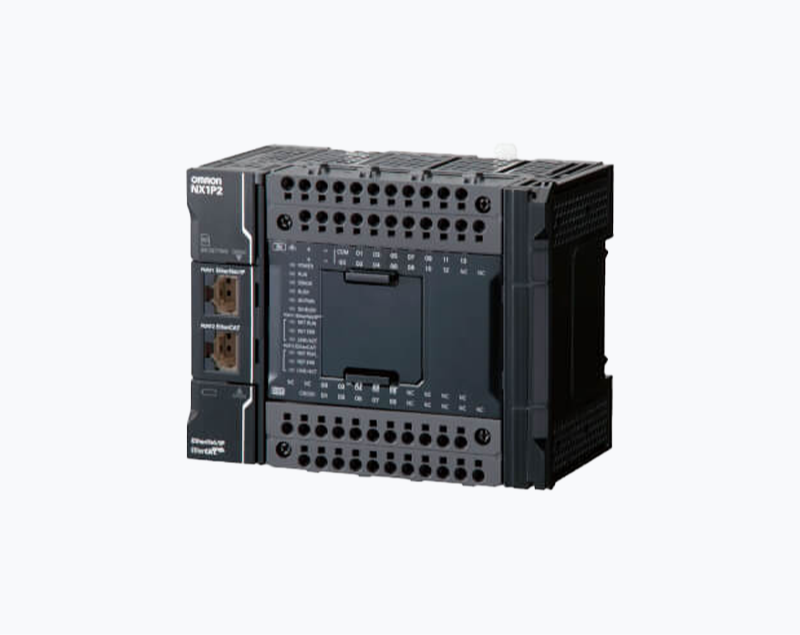

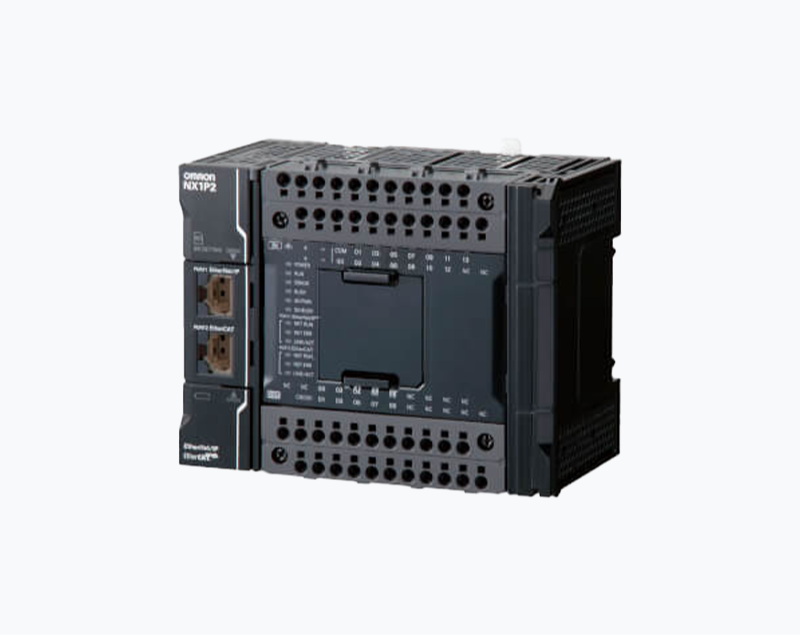

NX1P2-1040DT
Sysmac NX1P CPU, 40 Dijital Transistor I/O (NPN), 1.5 MB hafıza, EtherCAT (2 senkron eksen, 4 PTP eksen, 16 EtherCAT cihazı), EtherNet/IP ve 2 opsiyonel seri port |
NX1P2-1040DT1
Sysmac NX1P CPU, 40 Dijital Transistor I/O (PNP), 1.5 MB hafıza, EtherCAT (2 senkron eksen, 4 PTP eksen, 16 EtherCAT cihazı), EtherNet/IP ve 2 opsiyonel seri port |
NX1P2-1140DT
Sysmac NX1P CPU, 40 Dijital Transistor I/O (NPN), 1.5 MB hafıza, EtherCAT (4 senkron eksen, 4 PTP eksen, 16 EtherCAT cihazı), EtherNet/IP ve 2 opsiyonel seri port |
NX1P2-1140DT1
Sysmac NX1P CPU, 40 Dijital Transistor I/O (PNP), 1.5 MB hafıza, EtherCAT (4 senkron eksen, 4 PTP eksen, 16 EtherCAT cihazı), EtherNet/IP ve 2 opsiyonel seri port |
NX1P2-9024DT
Sysmac NX1P CPU, 24 Dijital Transistor I/O (NPN), 1.5 MB hafıza, EtherCAT (0 senkron eksen, 4 PTP eksen, 16 EtherCAT cihazı), EtherNet/IP ve 2 opsiyonel seri port |
NX1P2-9024DT1
Sysmac NX1P CPU, 24 Dijital Transistor I/O (PNP), 1.5 MB hafıza, EtherCAT (0 senkron eksen, 4 PTP eksen, 16 EtherCAT cihazı), EtherNet/IP ve 2 opsiyonel seri port |
NX1P2-9B24DT
Sysmac NX1P CPU with 24 Digital Transistor I/O (NPN), 1 MB memory, EtherCAT (0 servo axes, 2 PTP axes, 8 EtherCAT nodes), EtherNet/IP and 1 serial option port |
NX1P2-9B24DT1
Sysmac NX1P CPU with 24 Digital Transistor I/O (PNP), 1 MB memory, EtherCAT (0 servo axes, 2 PTP axes, 8 EtherCAT nodes), EtherNet/IP and 1 serial option port |
NX1P2-9B40DT
Sysmac NX1P CPU with 40 Digital Transistor I/O (NPN), 1 MB memory, EtherCAT (0 servo axes, 2 PTP axes, 8 EtherCAT nodes), EtherNet/IP and 2 serial option port |
NX1P2-9B40DT1
Sysmac NX1P CPU with 40 Digital Transistor I/O (PNP), 1 MB memory, EtherCAT (0 servo axes, 2 PTP axes, 8 EtherCAT nodes), EtherNet/IP and 2 serial option port |
NB10W-TW01B
| HMI dokunmatik ekran, 10,1 inç WVGA (800 x 480 piksel) TFT renk, Ethernet + USB Host |
NA5-12W101B-V1
| Dokunmatik Ekran, 12.1 inch geniş ekran, TFT LCD, 24bit renk, 1280x800 çözünürlük, çerçeve rengi : Siyah |
NA5-12W101S-V1
| Dokunmatik Ekran, 12.1 inch geniş ekran, TFT LCD, 24bit renk, 1280x800 çözünürlük, çerçeve rengi : Gümüş |
NA5-15W101B-V1
| Dokunmatik Ekran, 15.4 inch geniş ekran, TFT LCD, 24bit renk, 1280x800 çözünürlük, çerçeve rengi : Siyah |
NA5-15W101S-V1
| Dokunmatik Ekran, 15.4 inch geniş ekran, TFT LCD, 24bit renk, 1280x800 çözünürlük, çerçeve rengi : Gümüş |
NA5-7W001B-V1
| Dokunmatik Ekran, 7 inch geniş ekran, TFT LCD, 24bit renk, 800x480 çözünürlük, çerçeve rengi : Siyah |
NA5-7W001S-V1
| Dokunmatik Ekran, 7 inch geniş ekran, TFT LCD, 24bit renk, 800x480 çözünürlük, çerçeve rengi : Gümüş |
NA5-9W001S-V1
| Dokunmatik Ekran, 9 inch geniş ekran, TFT LCD, 24bit renk, 800x480 çözünürlük, çerçeve rengi : Gümüş |

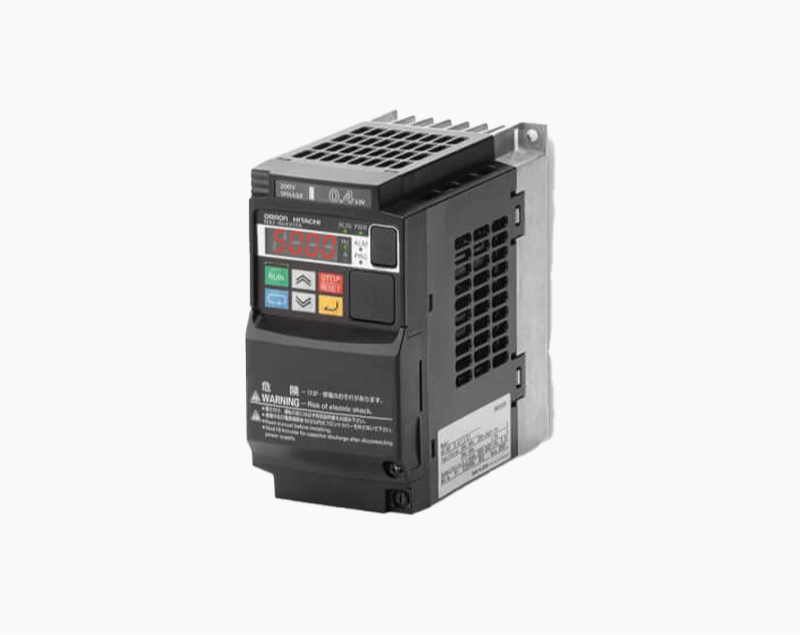

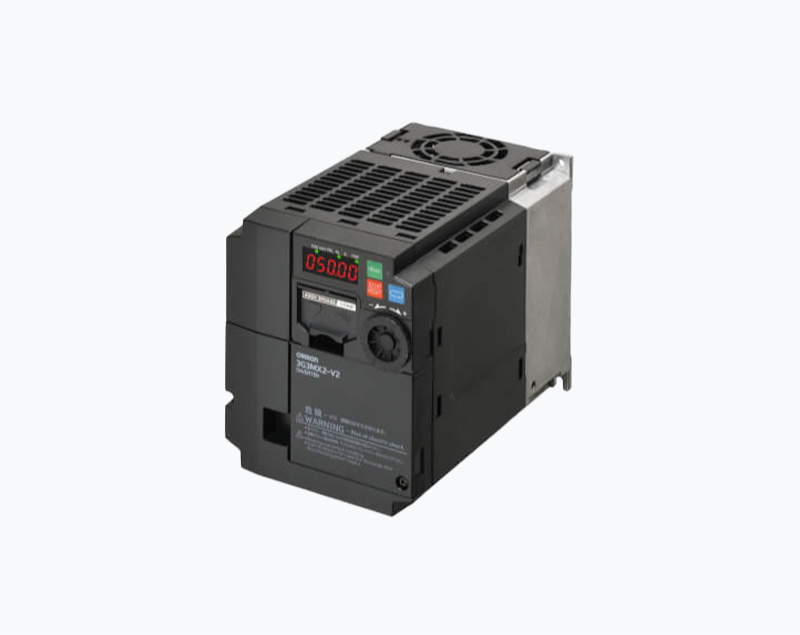

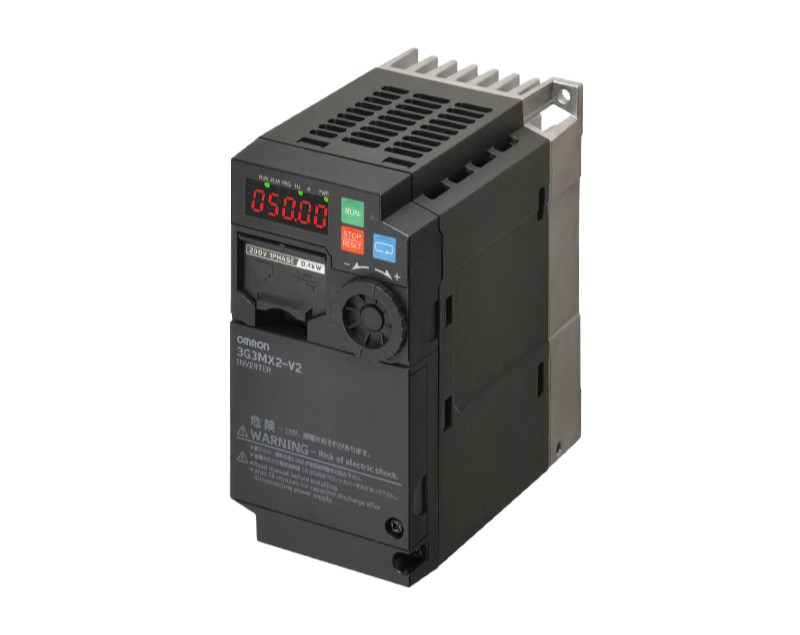

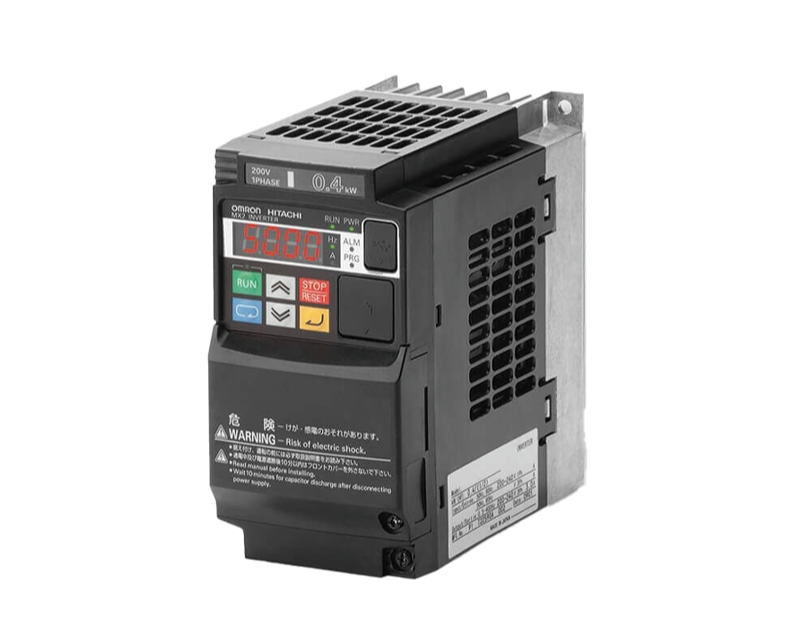

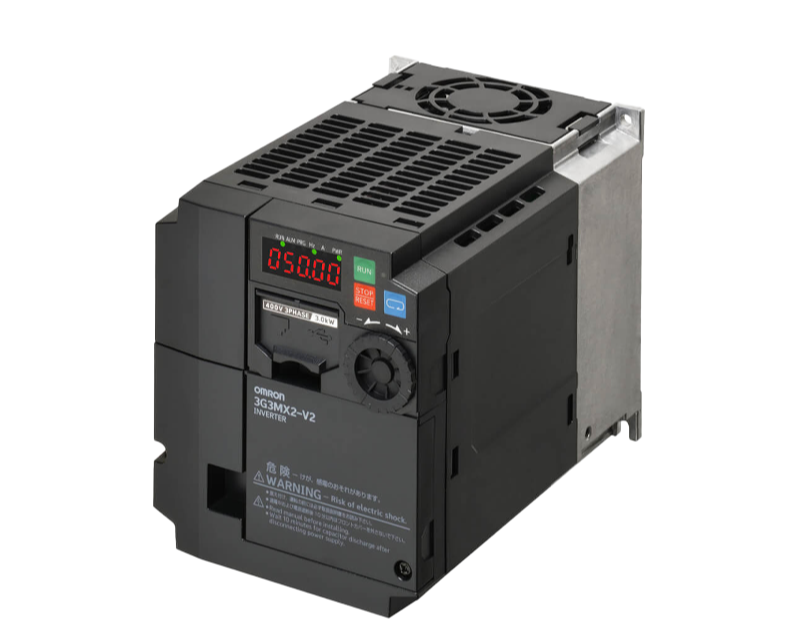

3G3MX2-AB004-E
| MX inverter sürücü, 0.4/0.55 kW (HD/ND), 3.0/3.5 A (HD/ND), 200 VAC, 1~ giriş, sensorless vector |
3G3MX2-AB007-E
| 3G3MX2 inverter drive, 0.75/1.1 kW (HD/ND), 5.0/6.0 A (HD/ND), 200 VAC, 1~ input, sensorless vector, |
3G3MX2-AB015-E
| MX inverter drive, 1.5/2.2 kW (HD/ND), 8.0/9.6 A (HD/ND), 200 VAC, 1~ input, sensorless vector, w/o heatsink |
3G3MX2-A4004-E
| MX inverter sürücü, 0.4/0.75 kW (HD/ND), 1.8/2.1 A (HD/ND), 400 VAC, 3~, sensorless vector |
3G3MX2-A4007-E
| MX inverter sürücü, 0.75/1.5 kW (HD/ND), 3.4/4.1 A (HD/ND), 400 VAC, 3~, sensorless vector |
3G3MX2-A4015-E
| MX inverter sürücü, 1.5/2.2 kW (HD/ND), 4.8/5.4 A (HD/ND), 400 VAC, 3~, sensorless vector |
3G3MX2-A4030-E
| MX inverter sürücü, 3.0/4.0 kW (HD/ND), 7.2/8.8 A (HD/ND), 400 VAC, 3~, sensorless vector |
3G3MX2-A4030-E
| MX inverter sürücü, 3.0/4.0 kW (HD/ND), 7.2/8.8 A (HD/ND), 400 VAC, 3~, sensorless vector |
3G3MX2-A4040-E
| MX inverter sürücü, 4.0/5.5 kW (HD/ND), 9.2/11.1 A (HD/ND), 400 VAC, 3~, sensorless vector |
3G3MX2-A4055-E
| MX inverter sürücü, 5.5/7.5 kW (HD/ND), 14.8/17.5 A (HD/ND), 400 VAC, 3~, sensorless vector |
3G3MX2-A4075-E
| MX inverter sürücü, 7.5/11.0 kW (HD/ND), 18/23 A (HD/ND), 400 VAC, 3~, sensorless vector |
NX-ECC203
| Uzak I/O, NX, 2 port EtherCAT Coupler, 125 µs döngü süresi, max I/O akımı 10 A, sonlandırıcı ile birlikte teslim edilir |

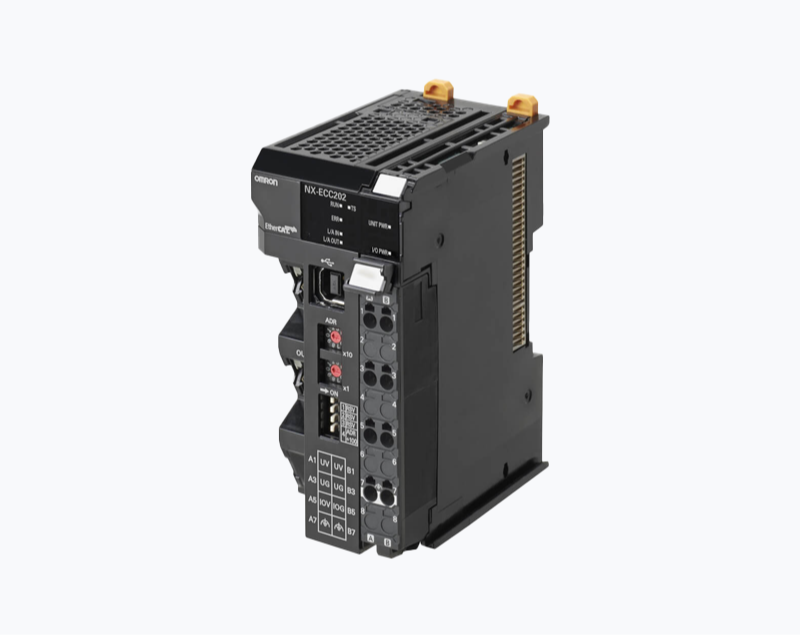

NX-ECC202
| NX-series EtherCAT Coupler, 2 ports, 250 µs cycle time, 63 I/O units, max I/O current 10 A, screwless push-in connector, delivered with end cover |
NX-ECC201
| NX-series EtherCAT Coupler, 2 ports, 250 µs cycle time, 63 I/O units, max I/O current 4 A, screwless push-in connector, delivered with end cover |
NX-EIC202
| Uzak I/O, NX, EtherNet/IP Coupler, 63 I/O ünitesi, bağımsız güvenlik kontrolcüsünü destekler, 10A max |

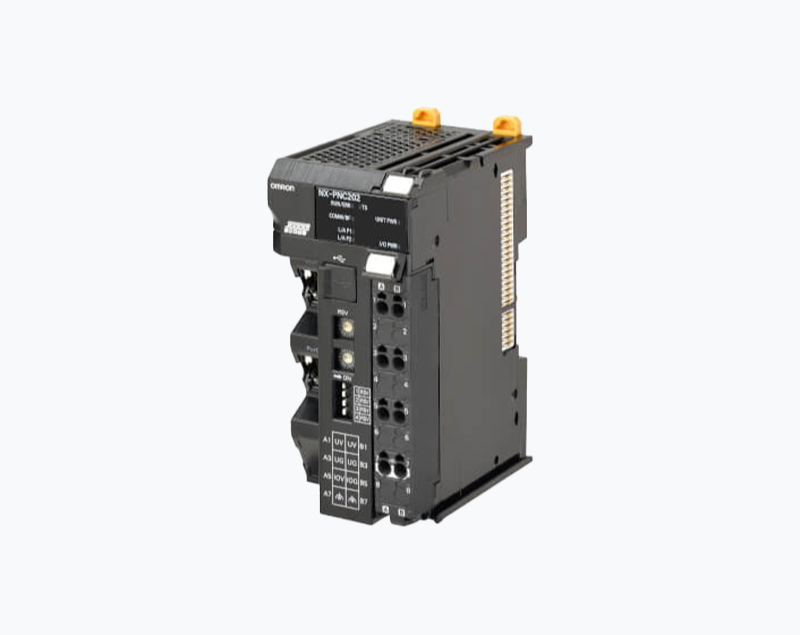

NX-PNC202
| NX-series PROFINET Coupler, 2 ports, 63 I/O units, max I/O current 10 A, screwless push-in connector, delivered with end cover |

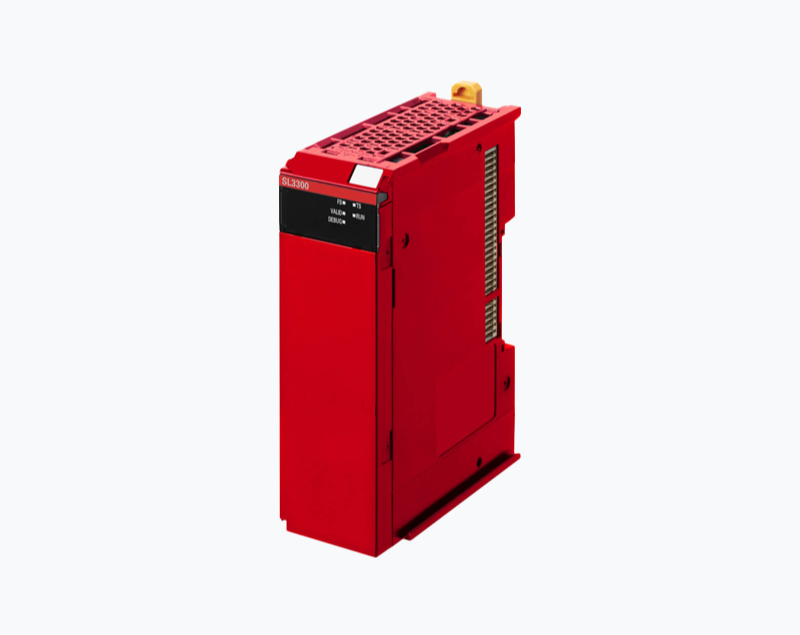

NX-SL3300
| Güvenlik Kontrolörü, NX, 32 güvenlik master bağlantı, 256 güvenlik I/O ya kadar |
NX-SL3500
| NX-serisi I/O, NX Güvenlik kontrolör, 1024 güvenlik I/O ya kadar ve 2Mb hafıza kapasitesi |

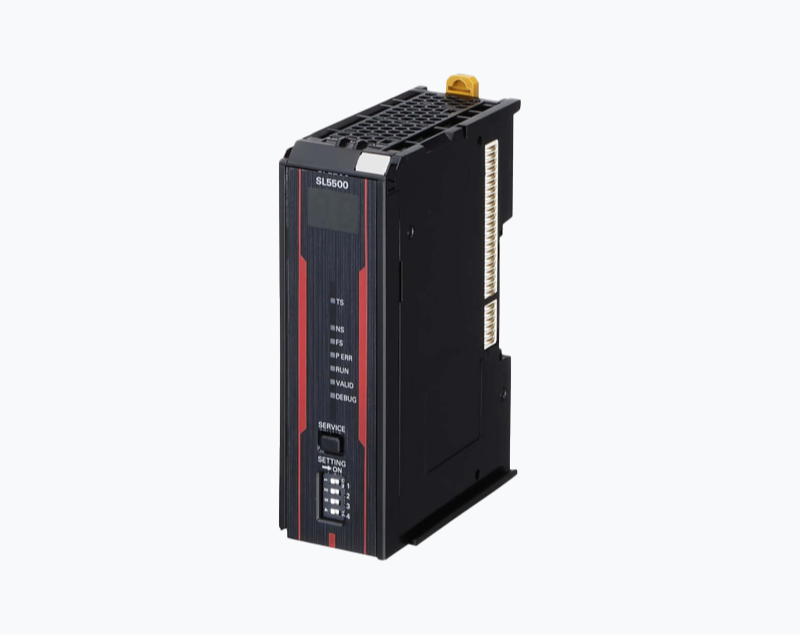

NX-SL5500
| Safety controller, CIP-S and EtherCAT, 128 safety master connections, up to 1024 safety I/O, 2 MB memory capacity, SD Backup/Restore supported |

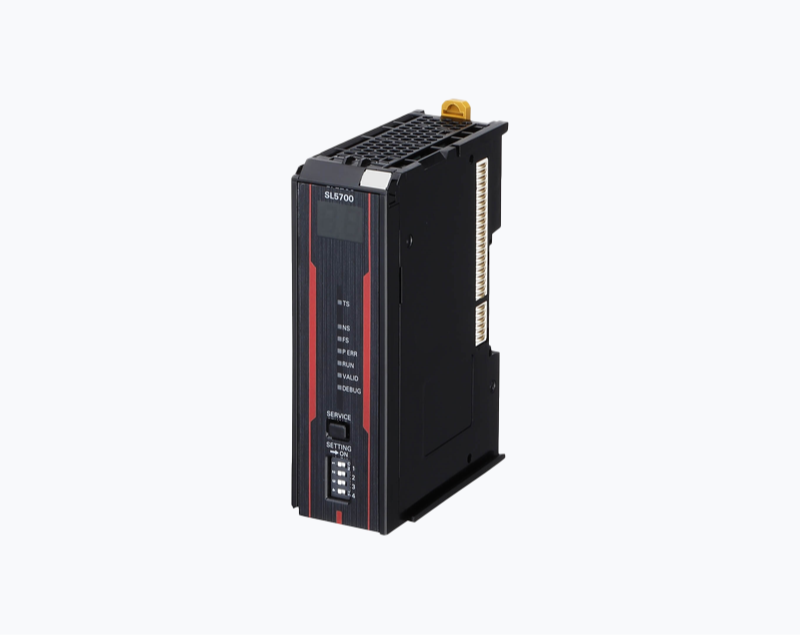

NX-SL5700
| Safety controller, CIP-S and EtherCAT, 254 safety master connections, up to 2032 safety I/O, 4 MB memory capacity, SD Backup/Restore supported |

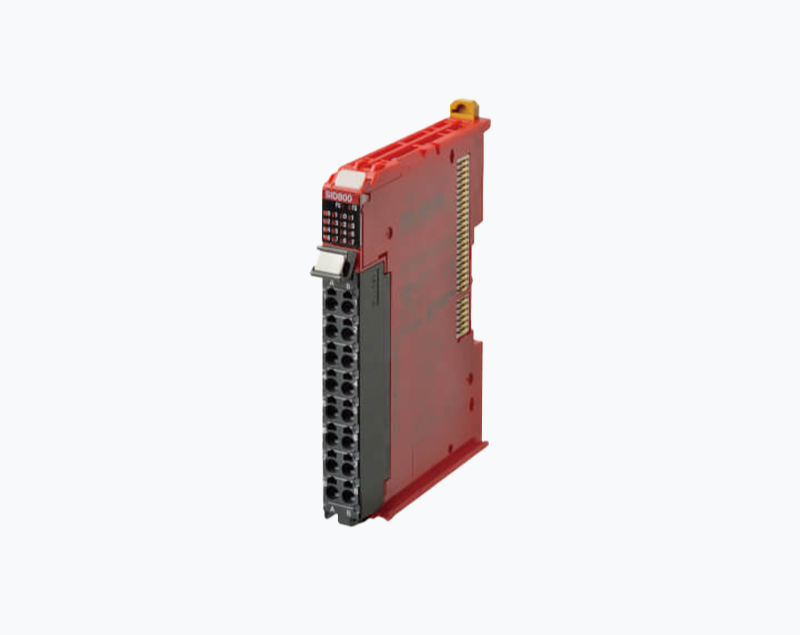

NX-SIH400
| 4 Dijital Güvenlik Girişi, PNP 24 VDC, yüksek bağlanılabilirlik ünite, 12 mm genişlik |
NX-SOD400
| 4 Dijital Güvenlik Çıkışı, PNP 24 VDC, 0.5 A/nokta, 2.0 A/NX Ünite, 12 mm genişlik |
NX-SOH200
| 2 Dijital Güvenlik Çıkışı, PNP 24 VDC, 2.0 A/nokta, 4.0 A/NX Ünite, 12 mm genişlik |

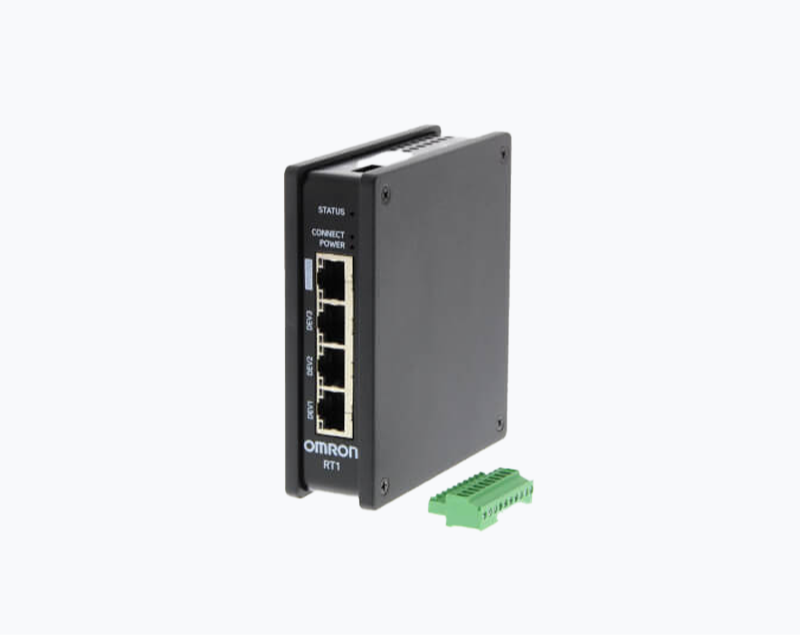

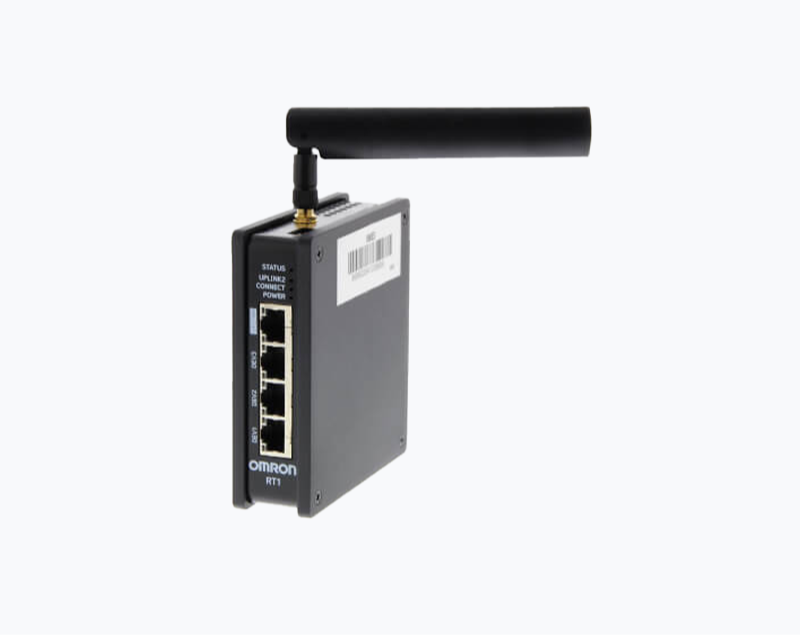

RT100-4GM3010-G
| RT1-series SiteManager 4G Global, 10 Device Agents, 3x Ethernet Ports, 1x Micro SD slot, 1x USB port |
RT100-EMM3010
| RT1-series SiteManager LAN, 10 Device Agents, 3x Ethernet Ports, 1x Micro SD slot, 1x USB port |
RT100-EMM3010
| RT1-series SiteManager LAN, 10 Device Agents, 3x Ethernet Ports, 1x Micro SD slot, 1x USB port |
RT100-W5M3010
| RT1-series SiteManager WiFi, 10 Device Agents, 3x Ethernet Ports, 1x Micro SD slot, 1x USB port |
RT1L-A01
| LinkManager license (Additional Floating License) to enable concurrent access to GateManager |
NX102-9000
Sysmac NX1 Modular CPU, 5MB program and 33.5MB data memory , built-in EtherCAT (0 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP) |
